NS-HP-GN : GNSS RTK Receiver

$120.00

Product Description

NS-HP-GN is S1216F8-RTK receiver in easy to use breakout board form. HS-HP-GN is essentially NS-HP-GL-10 and NS-HP-BD-10 in a single module.

KEY RTK FEATURES
* Tracks all (GPS & GLONASS) or (GPS & BDS) in view satellites
* For < 10Km baseline, 1cm + 1ppm position accuracy
* Base or rover mode user programmable
* Supports 1 / 2 / 4 / 5 / 8 / 10 Hz RTK
* -S version supports pulse triggered RTK position stamping, far precise than time interpolated position for aerial survey
* 70mA @ 3.3V

APPLICATIONS
* Centimeter-level high precision navigation
* Survey and GIS data collection
* Aerial mapping



DOWNLOADS
NS-HP-GN User Guide (.pdf, ver 0.1, 20180628)
S1216F8-RTK Datasheet (.pdf, ver 2, 20180523)
Raw Measurement Protocol (.pdf, ver 1.4.36, 20180410)

GNSS Viewer and Binary Command Interface can be downloaded from RESOURCE page

RTK Post Process (generating RTK position from logged raw measurement files, 20170324)

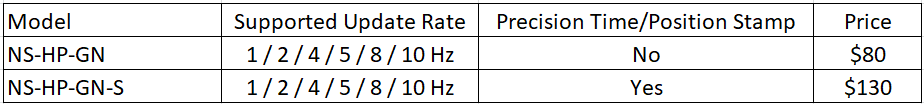

ORDER OPTIONS


FIRMWARE UPDATE
NS-HP-GN GPS/GLONASS RTK (20180719)
NS-HP-GN GPS/BDS RTK (20180719)
NS-HP-GN-S GPS/GLONASS RTK (20180724)
NS-HP-GN-S GPS/BDS RTK (20180724)

OTHER ITEMS OF INTEREST

RTK Antenna: http://navspark.mybigcommerce.com/survey-grade-antenna/

High Precision Antenna: http://navspark.mybigcommerce.com/high-precision-antenna/

SMA-to-UFL connector cable: http://navspark.mybigcommerce.com/sma-to-u-fl-connector-cable-4pcs-set/

UART-to-USB : http://navspark.mybigcommerce.com/uart-to-usb-adapter-board/

S1216F8-BD-RTK evaluation board: http://navspark.mybigcommerce.com/s1216f8-rtk-evb-rtk-module-evaluation-board/

Product Reviews

Write Review

This product hasn't received any reviews yet. Be the first to review this product!

Quantity:
Weight:
3.00 Grams
Shipping:
Calculated at checkout
