Product Description
Orion B16-C is a dual-frequency GPS / GLONASS / Galileo / Beidou / QZSS carrier phase raw measurement receiver for low earth orbit application. By using all 4 global navigation satellite systems, the Orion B16-C offers superior performance than alternatives on the market.
Over 70 worldwide customers in cutting-edge LEO satellite applications using our various GPS, GPS/GLONASS, GPS/BDS, and GPS/GLONASS/Galileo/BDS receiver module products.
FEATURES
* Supporting:
GPS L1 / L2C
GLONASS L1 / L2
Galileo E1 / E5b
Beidou B1I / B2I
QZSS L1 / L2C
* Maximum velocity 10Km/sec+
* Supports Active GNSS Antennas
* Protocols: NMEA 0183
* UART 115200-8-N-1, 3.3V-CMOS levels
* Dimensions 12mm x 16mm x 3mm
* Power Consumption: 100mA @ 3.3V
* Weight: 1.6gram
CHIPSET SPEC
* 230 channel Phoenix engine
* 1 ~ 20 Hz update rate
* Position accuracy 1.5m CEP
* Velocity accuracy 0.1m/sec
* Warm start TTFF under open sky 29sec average
* Cold start TTFF under open sky 36sec average
* Cold start sensitivity -148dBm
* Tracking sensitivity -165dBm
* Atomic clock synchronized 1PPS time reference with +/-10nsec accuracy
zoom to view

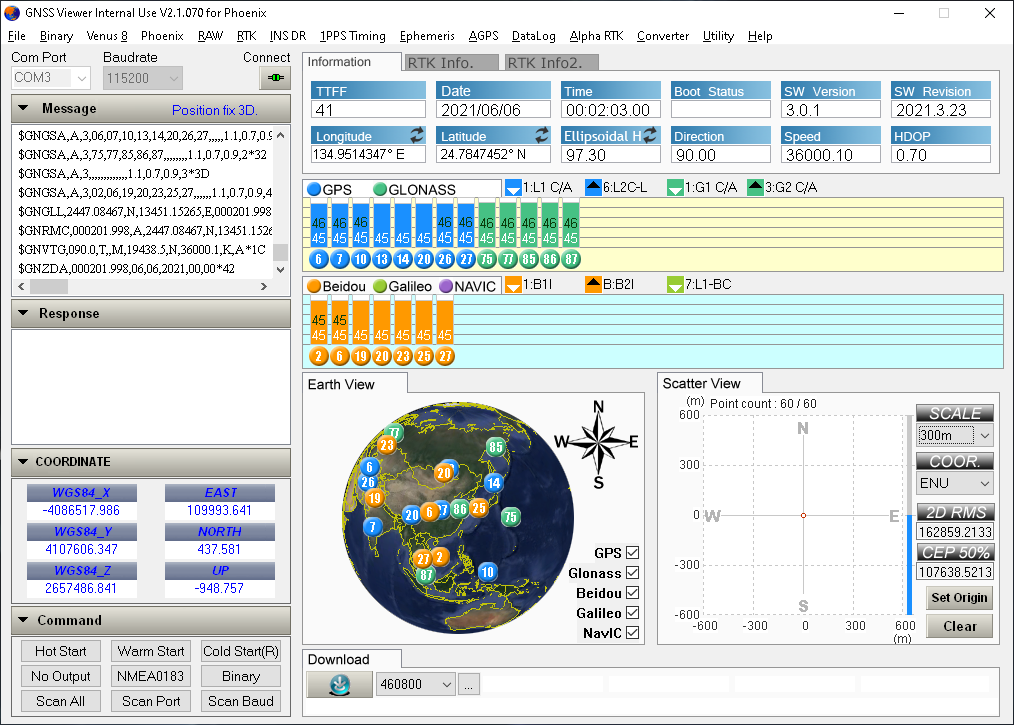

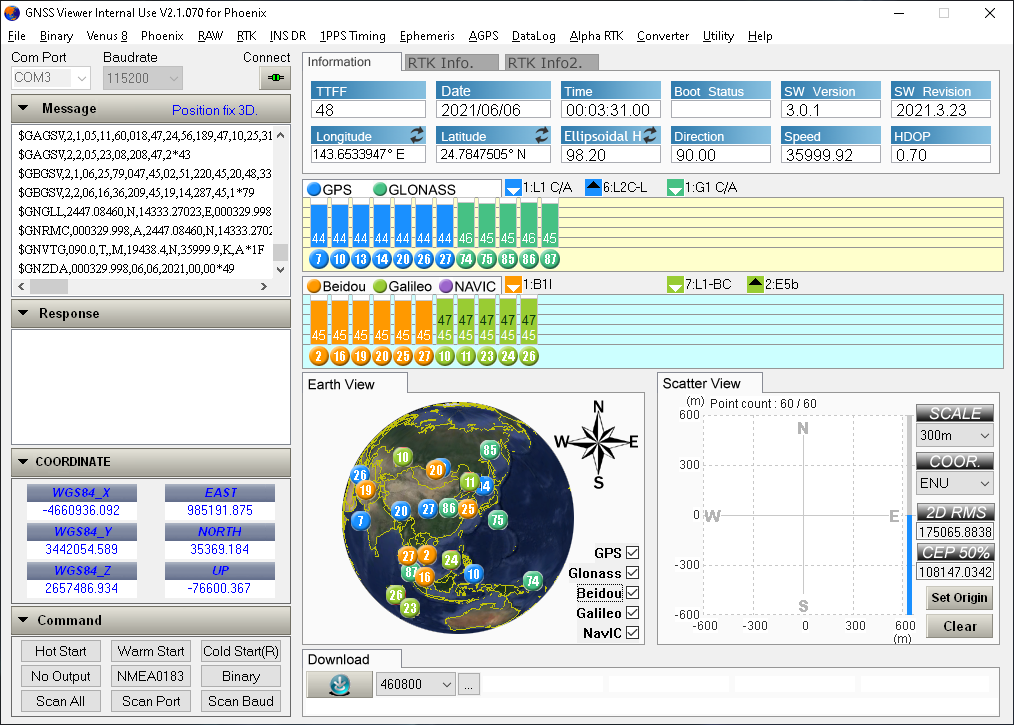

GNSS simulator testing @ 10Km/sec (limited channel of the simulator)

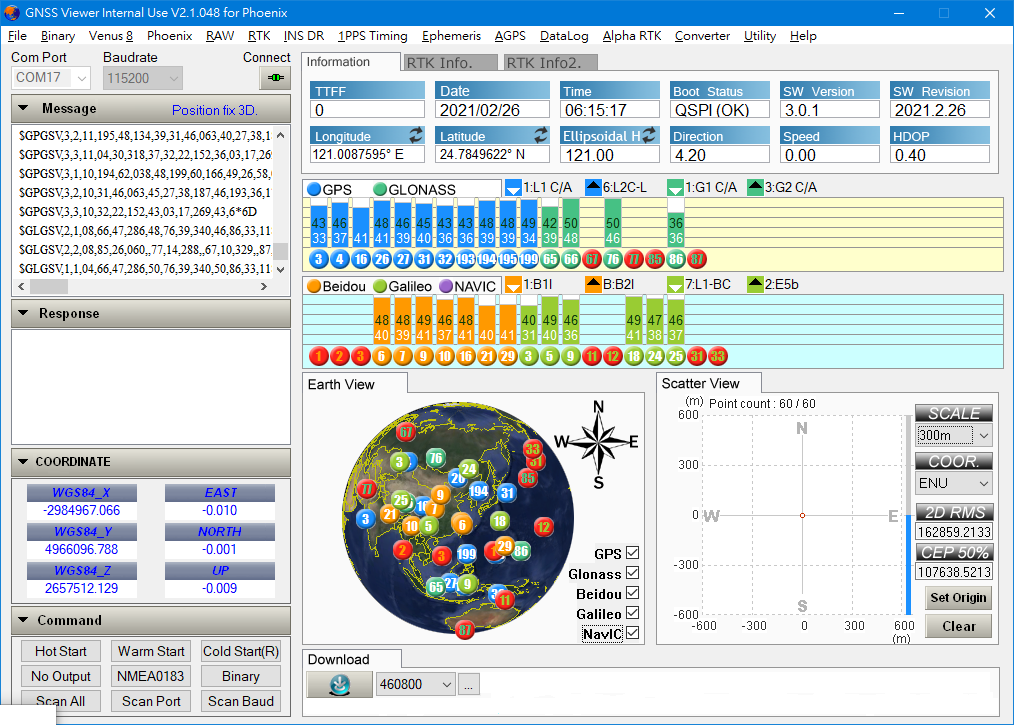

Live signal static testing (all in view signal tracking)
DOWNLOADS
Datasheet (.pdf, ver 1.2, 20210512)
Binary Command Interface (.pdf, ver 1.4.55, 20210716)
Raw Measurement Protocol (.pdf, ver 1.4.39, 20201230)
