Product Description
Orion B16 is a GPS / GLONASS / Galileo / Beidou / QZSS receiver that provides position / velocity / timing output for low earth orbit application. By using all 4 global navigation satellite systems, Orion B16 provides more robust solution than alternatives on the market.
Over 70 worldwide customers.
Over 8000 units of Orion B16 delivered to satellite-making customers accumulated to-date !
FEATURES
* GPS / GLONASS / Galileo / BDS / QZSS All-In-View Tracking
* Maximum velocity 10Km/sec+
* Supports Active GNSS Antennas
* Protocols: NMEA 0183
* UART 115200-8-N-1, 3.3V-CMOS levels
* Dimensions 12mm x 16mm x 3mm
* Power Consumption: 65mA @ 3.3V
* Weight: 1.6gram
CHIPSET SPEC
* 230 channel Phoenix engine
* 1 ~ 20 Hz update rate
* Position accuracy 2.0m CEP
* Velocity accuracy 0.1m/sec
* Warm start TTFF under open sky 46sec average
* Cold start TTFF under open sky 50sec average
* Cold start sensitivity -148dBm
* Tracking sensitivity -165dBm
* Atomic clock synchronized 1PPS time reference with +/-10nsec accuracy
We also have other dual frequency and carrier phase raw measurement options. Contact us for more information.
zoom to view

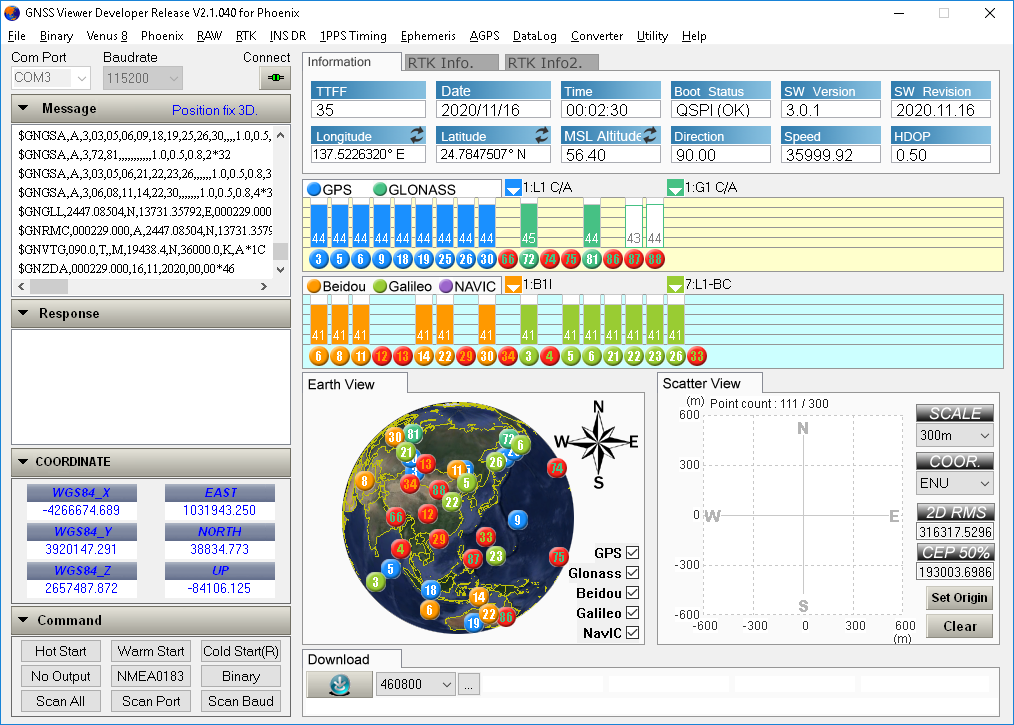

GNSS simulator testing @ 10Km/sec (limited channel of the simulator)

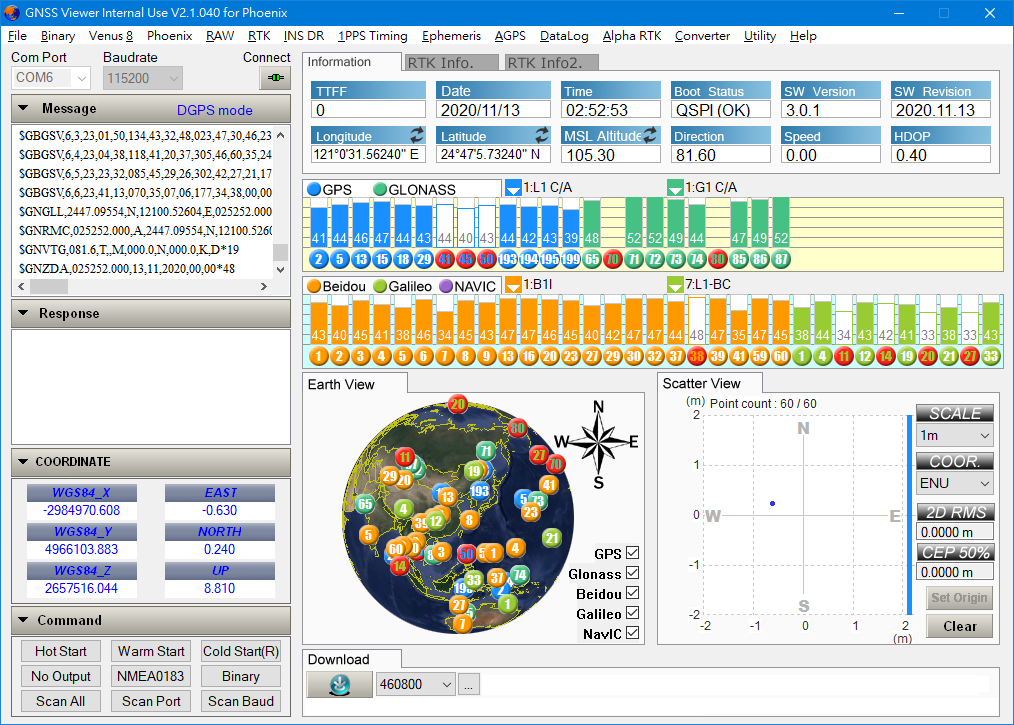

Live signal static testing (all in view signal tracking)
DOWNLOADS
Datasheet (.pdf, ver 1.5, 20220916)
Binary Command Interface link (.pdf, ver 1.4.49, 20201230)
