Product Description
GPS receiver chipset for G-hardening precision guidance defense application.
FEATURES
* GPS L1 C/A Code Receiver
* All-In-View Signal Tracking
* Maximum velocity 2000m/sec
* TTFF ~7sec @ 1300m/sec 40dH-Hz signal
* TTFF ~10sec @ 1300m/sec 35dB-Hz signal
CHIPSET SPEC
* 230 channel Phoenix engine
* 10 Hz update rate
* Position accuracy 1.5m CEP
* Velocity accuracy 0.05m/sec
* Protocols: NMEA 0183
* UART 115200-8-N-1, 3.3V-CMOS levels
* Package 5mm x 5mm QFN40
* Power Consumption: 55mA @ 3.3V

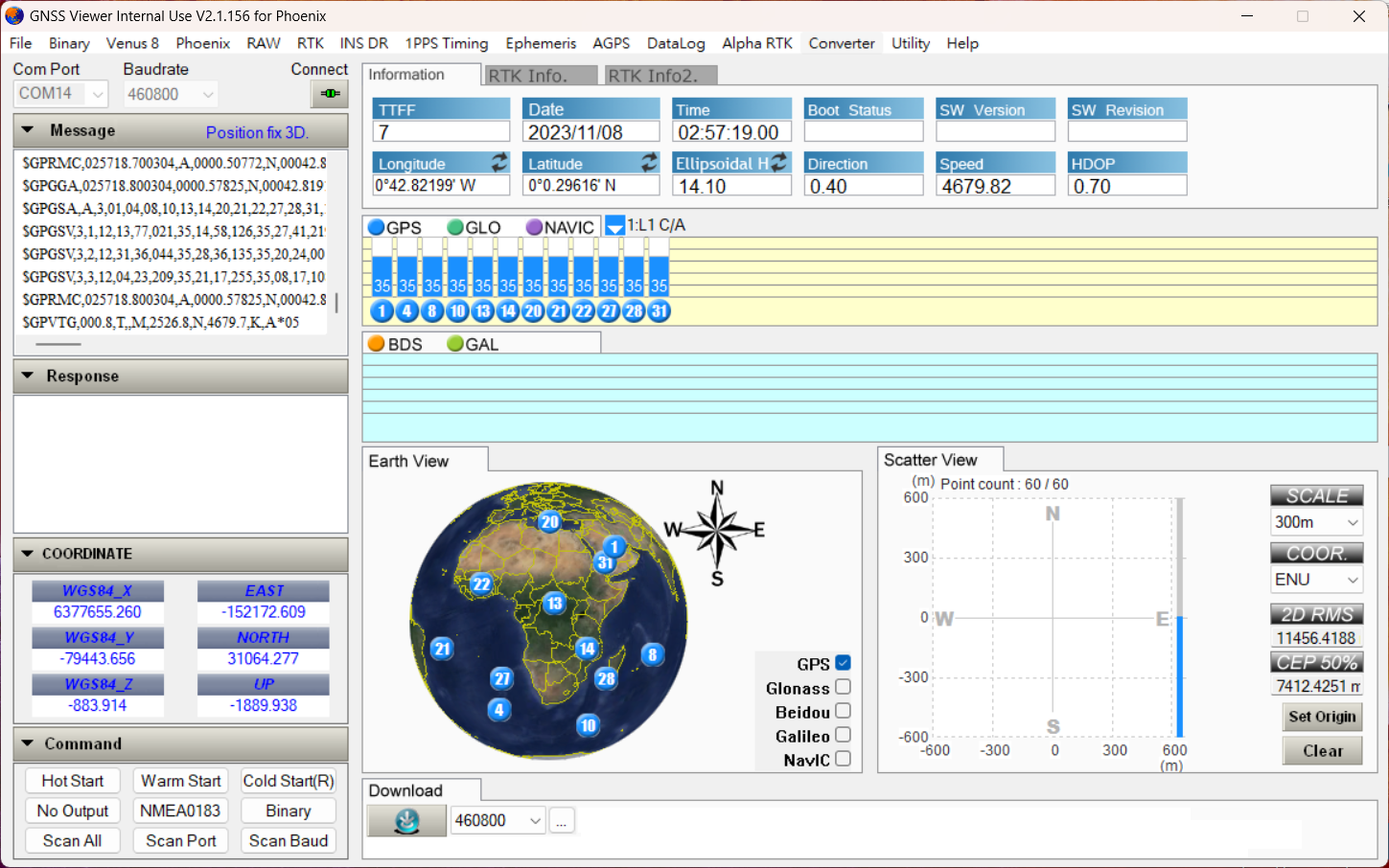

GPS Simulator Testing @ 1300m/sec
DOWNLOADS
Datasheet (.pdf, ver 2, 20231115)
Binary Command Interface (.pdf, ver 1.4.55, 20210716)
Additional satellite constellation (Galileo, GLONASS, Beidou, QZSS, IRNSS) or frequency (L2, L5) also possible. Contact us for information.
