Product Description

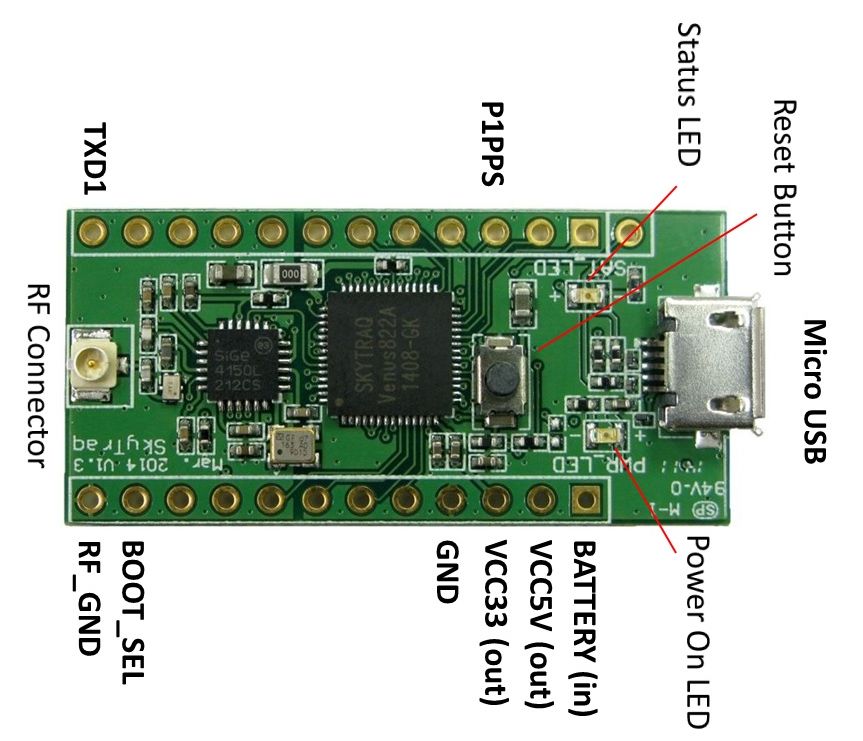

NS-RAW is a plug-and-play carrier phase raw measurement output GPS receiver. Raw measurement binary output is available on USB and TXD1. User can apply 3rd party RTK software to get cm-level RTK position accuracy. NS-RAW is not user programmable.

GENERAL SPECS
* Breadboard compatible
* 38mm x 18mm size

GPS CHIPSET SPEC
* 167 channel Venus 8 engine
* uses GPS, SBAS, QZSS signals
* 1 ~ 20 Hz update rate
* Position accuracy 2.5m CEP
* Velocity accuracy 0.1m/sec
* Warm start TTFF under open sky 29sec average
* Cold start TTFF under open sky 30sec average
* Cold start sensitivity -148dBm
* Tracking sensitivity -165dBm
* Operating range : (altitude < 18km) or (speed < 515m/sec), both not exceeded simultaneously
* Atomic clock synchronized P1PPS time reference with +/-10nsec accuracy
