Product Description
10.1mm x 9.7mm size high performance L1/L5 GPS / GNSS RTK receiver for centimeter level accuracy applications.
KEY FEATURES
* 230 Channel Carrier Phase Measurement RTK Receiver
* Hardware Supporting:
GPS L1 / L5
Galileo E1 / E5a
Beidou B1I / B2a
QZSS L1 / L5
GLONASS L1
NavIC L5
* Integrated RTK, no 3rd party software needed
* 1cm + 1ppm RTK accuracy in seconds
* Fast and reliable performance
* Base or rover mode configurable
* Precise RTK position and heading using two modules
* Heading accuracy 0.27 / 0.07 deg @ 50 / 200 cm baseline
* Output dual-frequency carrier phase measurement in base mode
* Very small size and energy efficient
* Easy RTK integration for fast time to market
* Little design effort and no technology risk
RTK APPLICATIONS
* Centimeter-level high precision navigation
* Precision agriculture
* Machine control guidance
* Survey and GIS data collection
* Structure and deformation monitoring
RTK applications require a base and a rover. The base can be 3rd party L1/L5 or L1/L2/L5 quad-GNSS RTK base or correction service, or one can easily setup a local RTK base to use in base & rover pair operation using two PX1125R.

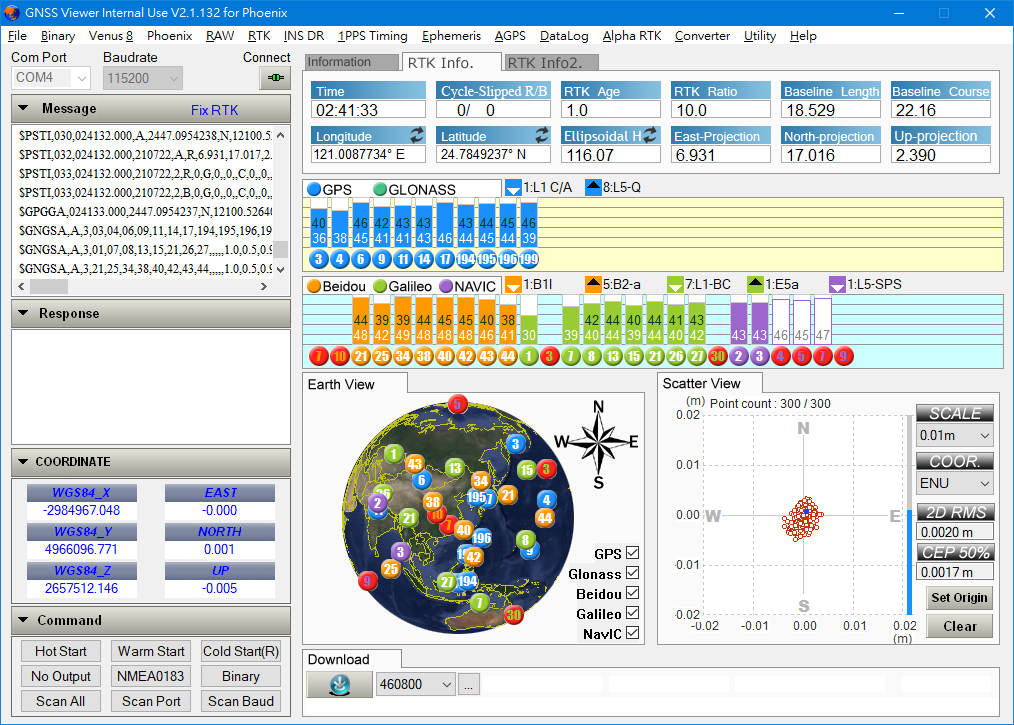

PX1105R: GPS/QZSS L1/L5 + Galileo E1/E5a + Beidou B1I/B2a + NavIC L5

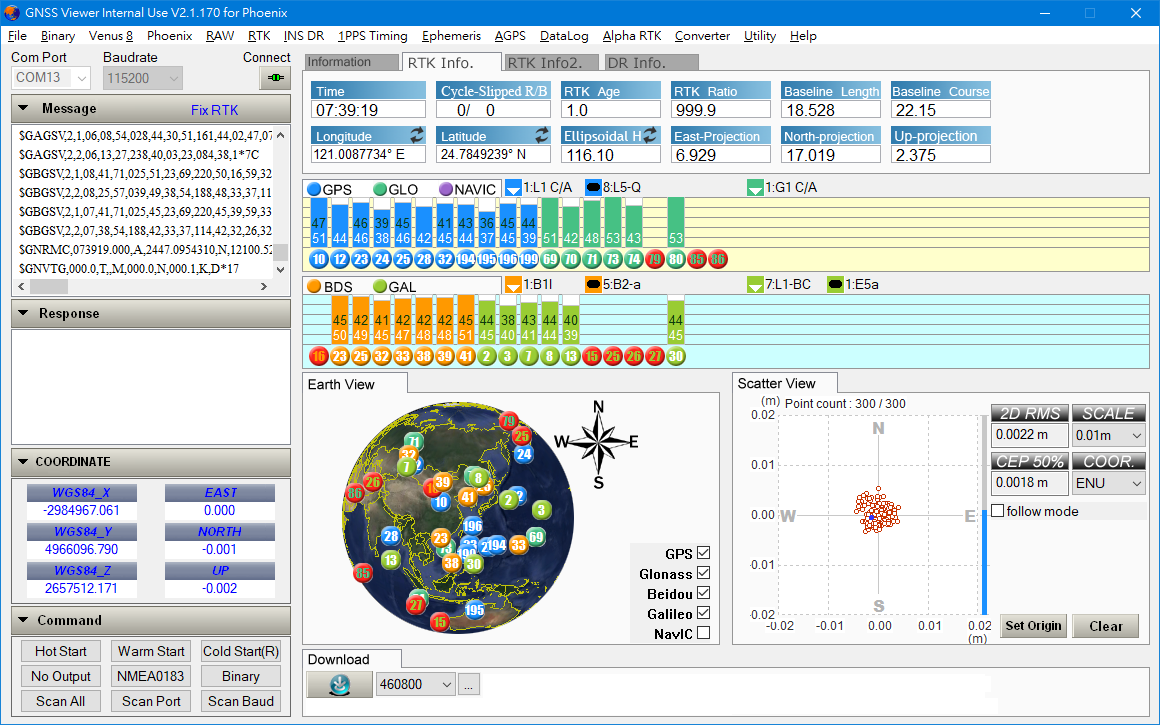

PX1105R-01: GPS/QZSS L1/L5 + Galileo E1/E5a + Beidou B1I/B2a + GLONASS L1
DOWNLOADS
PX1105R Datasheet (.pdf, ver 1, 20240621)
FIRMWARE UPDATE (must only use following GNSS Viewer 2.1.0xx to update)
PX1105R (20230831)
PX1105R-01 (20240111)
GNSS Viewer (2.1.135, 20220722)
Customer can load PX1105R or PX1105R-01 firmware to PX1105R module interchangeably.
