Product Description
The PX1105S is a L1/L5 GNSS receiver module for sub-meter level accuracy applications. It uses L1 and L5 dual-band signals to remove ionospheric error achieving improved accuracy. The L5 band signals are 10MHz in bandwidth, having better accuracy under multipath environment.
GNSS CHIPSET SPEC
* 230 channel Phoenix engine
* Hardware Supporting:
GPS L1 / L5
Galileo E1 / E5a
Beidou B1I / B2a
QZSS L1 / L5
GLONASS L1
NavIC L5
* 1 ~ 25 Hz update rate
* Position accuracy better than 1.0m CEP
* Velocity accuracy 0.1m/sec
* Cold start TTFF under open sky 29sec average
* Cold start sensitivity -147dBm
* Tracking sensitivity -162dBm
* Operating range : (altitude < 80km) and (speed < 515m/sec)
* Atomic clock synchronized P1PPS time reference with +/-10nsec accuracy

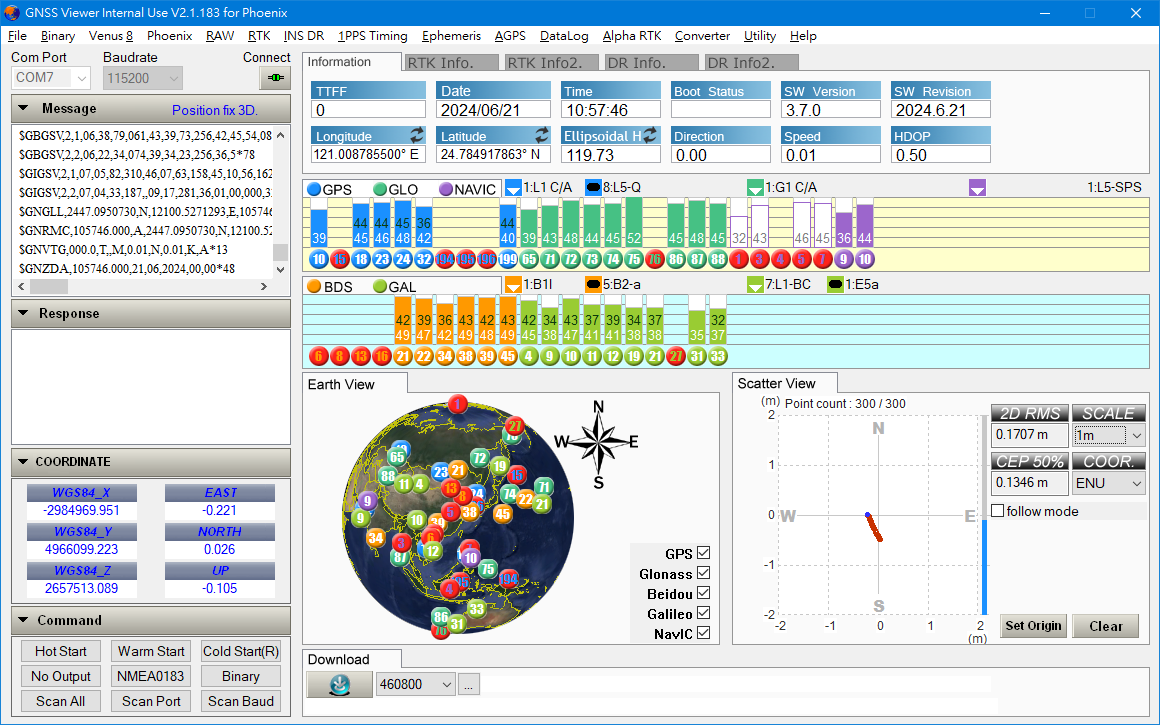

Power on convergence in below TEC condition
DOWNLOAD
Datasheet (PDF, ver 1, 20240621)
