Product Description
12mm x 16mm size high performance concurrent GPS / GLONASS / Galileo / Beidou / QZSS RTK receiver module for centimeter level accuracy applications.
KEY FEATURES
* 230 Channel Carrier Phase Measurement RTK Receiver
* Hardware Supporting:
GPS L1
Galileo E1
Beidou B1I
GLONASS L1
QZSS L1
* integrated RTK, no 3rd party software needed
* 1cm + 1ppm RTK accuracy in seconds
* Up to 10Hz quad-GNSS RTK update rate
* Base or rover mode configurable
* Moving base RTK mode for precision heading using two modules
* Simultaneous RTK positioning and RTK heading using two modules
* Output dual-frequency carrier phase measurement in base mode
* Very small size and energy efficient
* Easy RTK integration for fast time to market
* Little design effort and no technology risk
RTK APPLICATIONS
* Centimeter-level high precision navigation
* Survey and GIS data collection
RTK applications require a base and a rover. The base can be 3rd party RTK base station service, or one can easily setup a local RTK base to use in base & rover pair operation using two PX1120R.
DOWNLOADS
PX1120R Datasheet (.pdf, ver 4, 20210503)
FIRMWARE UPDATE (must only use following GNSS Viewer 2.1.00x to update)
PX1120R (20230830)

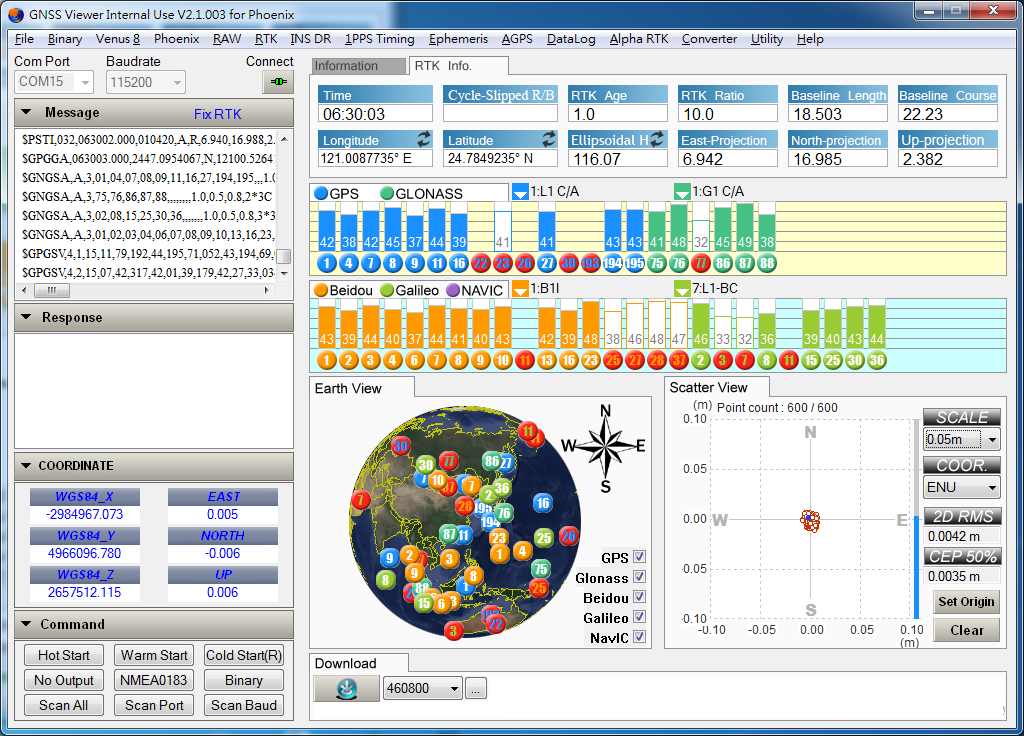

GNSS Viewer (2.1.125, 20220504)
