Product Description
The PX1120S-H is a high-performance concurrent GPS / GLONASS / Galileo / Beidou / QZSS / SBAS receiver capable of 100Hz GPS update rate.
GNSS CHIPSET SPEC
* 230 channel Phoenix engine
* Supports GPS, Galileo, Beidou, GLONASS SBAS, QZSS signal

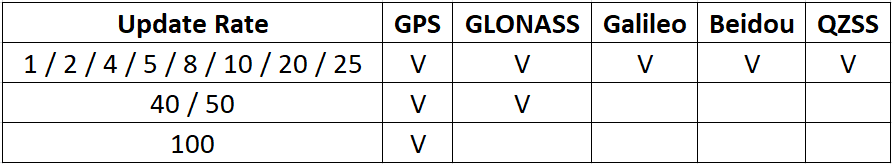

* 1 ~ 100 Hz update rate
* Position accuracy 1.5m CEP
* Velocity accuracy 0.1m/sec
* Cold start TTFF under open sky 29sec average
* Cold start sensitivity -148dBm
* Tracking sensitivity -165dBm
* Operating range : (altitude < 80km) and (speed < 515m/sec)
* Atomic clock synchronized P1PPS time reference with +/-10nsec accuracy
Navigating using 51 GNSS signals
DOWNLOAD
Datasheet (PDF, ver 1, 20210804)
FIRMWARE UPDATE (must only use following GNSS Viewer 2.1.0xx to update)
PX1120S-H (20220427)
GNSS Viewer (2.1.125, 20220504)
