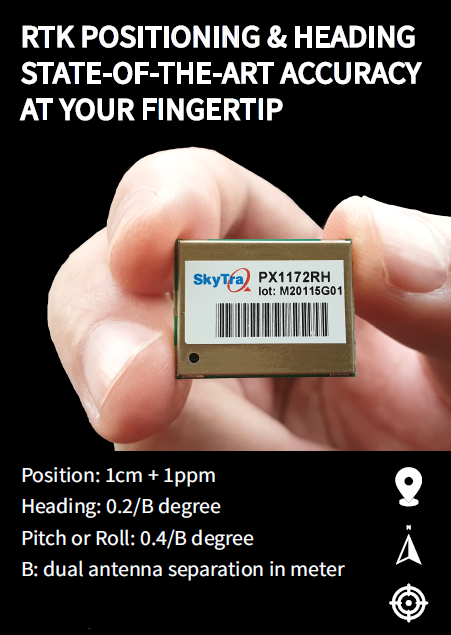

PX1172RH : L1/L2 RTK Position & Heading 1cm + 1ppm Accuracy

Dual-antenna input, 17mm x 22mm size, L1/L2/E5b GPS / GLONASS / Galileo / Beidou / QZSS RTK receiver for centimeter-level accuracy RTK positioning and sub-degree accuracy heading & pitch or heading & roll angle applications.

KEY FEATURES
* 1cm + 1ppm position accuracy
* 0.2/B degree heading accuracy *1
* 0.4/B degree pitch or roll accuracy *1
* 230 Channel Carrier Phase Measurement RTK Receiver
* Hardware Supporting:
   GPS L1 / L2C
   Galileo E1 / E5b
   Beidou B1I / B2I
   GLONASS L1 / L2
   QZSS L1 / L2C
* Integrated RTK, no 3rd party software needed
* RTK convergence in seconds
* Fast and reliable performance

*1 B: dual antenna separation in meter

APPLICATIONS
* Machine control precision guidance

DOWNLOADS
PX1172RH Datasheet (.pdf, ver 3, 20220620)

OTHER ITEMS OF INTEREST
PX1172RH Evaluation Board
PX1172RH-HAT
SS1722WC-L1L2

FIRMWARE UPDATE (must only use following GNSS Viewer 2.1.0xx to update)
PX1172RH (20230830)
GNSS Viewer (2.1.125, 20220504)
